EasyIO FS-32 Controller

EasyIO FS-32 Controller

32-Point, IP Controller

The FS-32 is a high-performance network controller with a 1.2 GHz quad core processor, 512 MB RAM, 8GB flash memory, HTML5 graphics, a suite of applications and kits, and multifunctional adapter widgets.

  • IP Sedona Controller
  • Built in HTML 5 Graphics
  • 2 485 ports (32 I/O, 16 U/I, 8 DO, 8 UO)

EasyIO FS-32 Controller

Contact us

Product Overview

The FS-32 offers incomparable performance and live programming via EasyIO CPT Tools. The FS-32 supports the latest IT network and security standards. The built-in VPN allows for secure remote connectivity, a unique feature in a controller.

Protocols such as BACnet, Modbus, MQTT, Sox, and TCom are supported. The FS series includes SQL database and REST API for additional data integration and multi-system interoperability. Flash RAM enables data collection and storage at the device.

The FS-32 has 16 UI, 8 UO, and 8 DO. Input point capacity can be expanded using the FD20i. Device and engineering licenses and annual maintenance upgrades are included in the one-time cost of the controller.

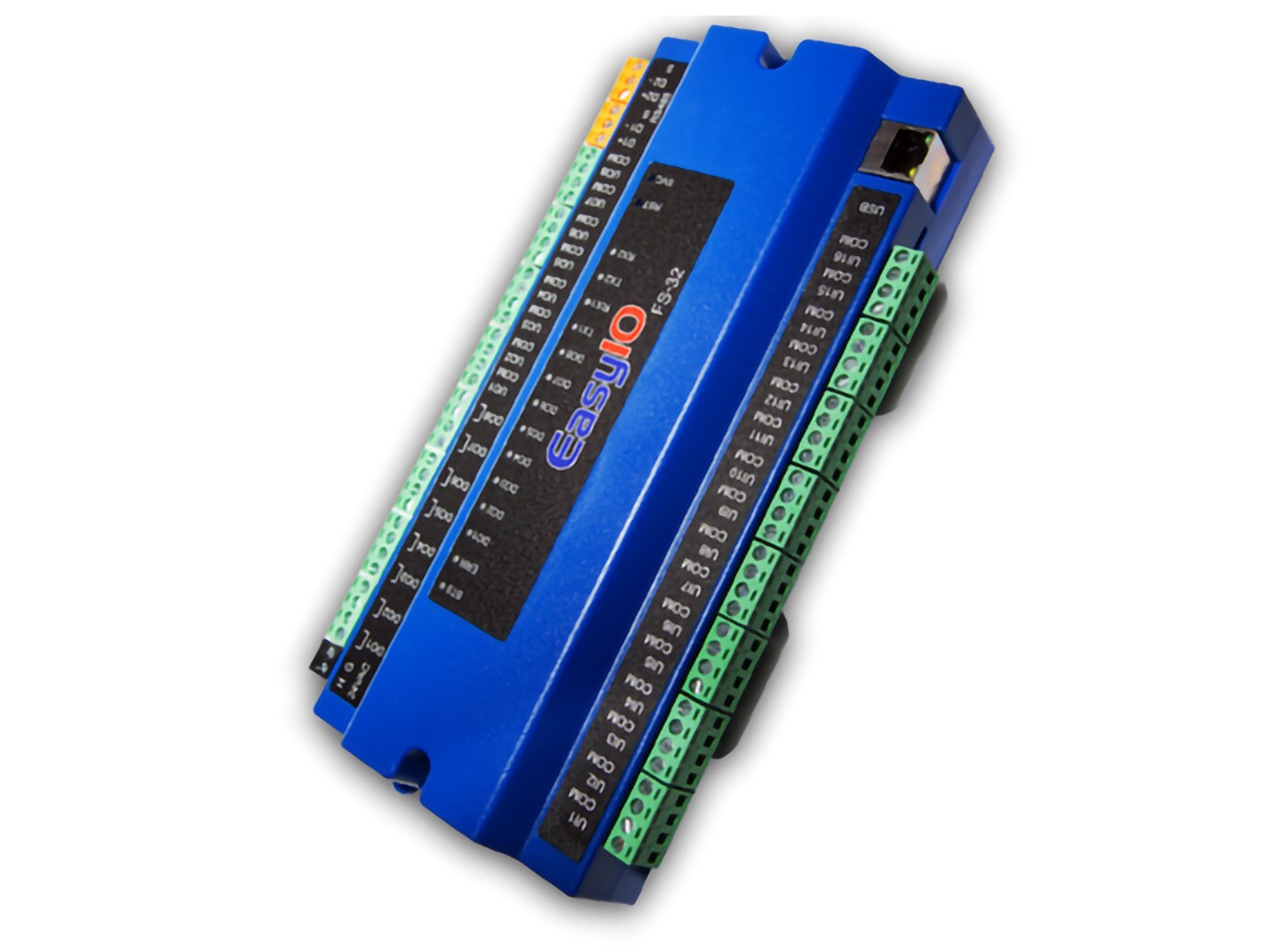

An Industrial electronic module, labeled EasyIO with multiple pin connectors

Features and Characteristics

  • On board 8GB of EMMC for storage and history
  • 512MB Gbyte RAM
  • Supports Enterprise Network Security 802.1x and TLS 1.3, SSL, IPv6 and DHCP Client
  •  8GB Flash Memory
  • BACnet MSTP Client/Server, BACnet IP Client/Server, Modbus TCP and RTU M/S, MQTT, TCOM, SOX
  • SD card holder
  • EasyIO Peer to Peer Protocol, compatible with FS, FG+, FW and FT Series
  •  1 x 10/100 Ethernet Port
  • Built-in HTML 5 web server and SSL certificate support
  •  2 x RS485
  • RESTful API and graphics web services
  •  Real Time Clock
  • Built-in VPN Server and Client
  •  SuperCap Apps Safety Backup
  • Network Time Protocol (NTP) Client
  •  24V AC/DC Power
  • SMTP protocol (outgoing email) with SSL authentication
  •  Remote Flash Upgrades
  • SQL Lite up to 100,000 records
  •  16x UI
  • Built-in dashboard
  •  8x DO (with LED indicator)
  • 1.2 Ghz Quad Core ARM A7 main processor
  •  8x UO
  • 48 Mhz ARM Cortex-M0 processor for the I/O
